Grounding tape

copper tape comprises of 28 grams soft copper foil backing and a unique electrically-conductive pressure-sensitive acrylic adhesive. This tape is 0.10mm thick, 19mm wide and 16.5m long. The copper foil is solder compatible, and oxidation resistant and does not discolour.

Connect with a grounding plate kit. Ideal for use with our Shielding Wall Coverings.Ideal for splicing, grounding and shielding in electronic applications, copper foil tapes offer single or double-sided conductivity.

Grounding tape is an electrically conductive copper foil tape backed with a robust adhesive that is covered with an easy to remove liner making the application of this material easy, fast and accurate.

Conductive Copper Foil Tape is used to create a ground grid that will promote excellent tile to tile conductivity when our Modular Peel and Stick Titanium ESD Tiles are placed on insulative surfaces such as VCT, Epoxy, carpet etc.

Advanced Features of Superior Grounding Tape

High-Quality Copper Foil Backing
Made from 28-gram soft copper foil, this tape offers excellent electrical conductivity, solderability, and oxidation resistance, ensuring long-lasting performance without discoloration.
Electrically Conductive Adhesive
The tape features a unique pressure-sensitive acrylic adhesive that provides strong adhesion to various substrates, including metals, insulating materials, and more, while maintaining electrical continuity.
Optimal Thickness and Dimensions
With a thickness of 0.10mm, a width of 19mm, and a length of 16.5m, the tape is perfectly suited for a wide range of applications. Custom dimensions are also available.
Wide Temperature Range
The tape operates effectively across a broad temperature range, making it suitable for use in both extreme cold and high-heat environments.
Easy to Apply and Remove
The tape is backed with an easy-to-remove liner, ensuring fast, accurate, and hassle-free application.
Static Discharge and EMI Shielding
Designed to effectively discharge static electricity and provide electromagnetic interference (EMI) shielding, the tape protects sensitive electronic equipment from damage and signal disruption.
Durability and Flexibility
The tape is highly flexible, allowing it to conform to complex shapes and surfaces, while its robust construction ensures long-term durability.

Grounding tape Applications

How to use: Clean the substrate and remove dust, oil and products that may interfere with the adhesive. Mark the area where the mesh is to be laid with a pencil or chalk. Remove the release film from the tape and press it onto the substrate next to the mark. Laying grounding copper foil mesh: conventional 0.05mm * 10mm * 50m specifications are appropriate, if the self-adhesive copper foil is too thin in the construction is easy to be pulled off, if the self-adhesive copper foil is too thick, you need to apply more paint to smooth the ground primer thickness differences due to the difference in the thickness of the self-adhesive copper foil and the primer brought about by the difference in the thickness of the primer. After the copper foil is laid, at least two grounding ports should be left for each 600 square metre area. After the copper wire is soldered to the copper foil, the copper wire is then connected to the indoor static grounding port leading to the outdoor area (one-way conduction), so that the static electricity can be smoothly conducted to the outdoor grounding conductive piles.

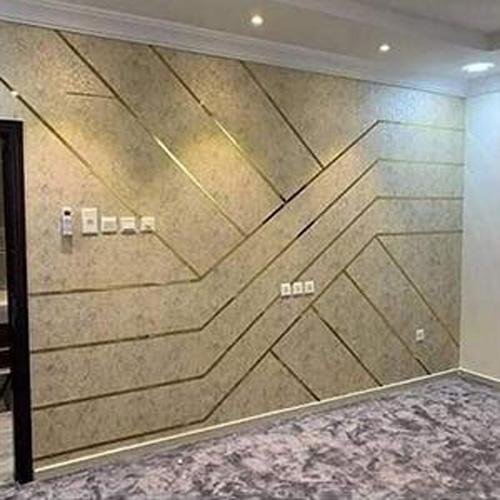

It can also be used as a home wall decoration to make your home look prettier.
