Electronic Component Grounding Copper Foil Tape

High-Conductivity Copper Foil

• Made from 28-gram soft copper for excellent electrical conductivity.
  Solder-compatible for secure connections.
  Oxidation-resistant to prevent discoloration and maintain performance.

Electrically Conductive Adhesive

• Pressure-sensitive acrylic adhesive ensures strong bonding to metals, plastics, and insulating surfaces.
  Maintains continuous electrical conductivity across joints and seams.

Optimal Dimensions for Versatile Use

• Thickness: 0.10mm | Width: 19mm | Length: 16.5m
  Available in custom sizes for specialized applications.

Wide Temperature Resistance

• Performs reliably in extreme cold and high-heat environments.
  Easy Application & Removal
  Pre-coated with a removable liner for quick, precise installation.
  Conforms to curved and irregular surfaces without cracking.

Superior EMI/RFI Shielding & Static Control

• Effectively dissipates static electricity to protect sensitive electronics.
  Blocks electromagnetic interference (EMI) for improved signal integrity.

Durable & Flexible Construction

• Tear-resistant for long-term use in demanding environments.
  Flexible enough for complex installations (e.g., around corners, joints, and seams).

ESD (Electrostatic Discharge) Protection

• Used in ESD flooring systems (e.g., conductive tiles, epoxy floors). Ensures proper grounding in cleanrooms, labs, and electronics manufacturing.

EMI/RFI Shielding

• Shields electronic enclosures, cables, and circuit boards from interference. Ideal for aerospace, medical devices, and telecommunications.

Grounding & Bonding in Electronics

• Connects PCBs, shielding cans, and conductive fabrics. Used in RFID antennas, wearable tech, and automotive electronics.

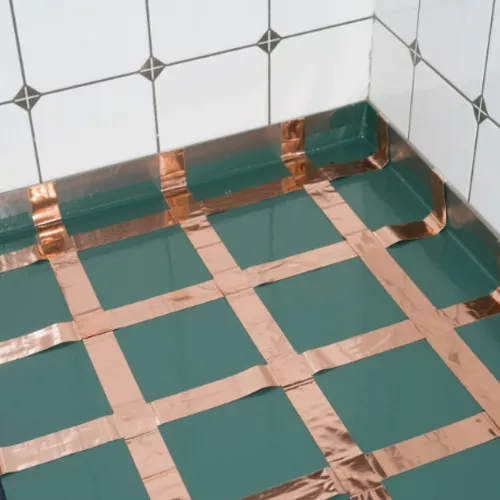

Static-Safe Flooring & Wall Coverings

• Creates a conductive grounding grid under ESD tiles, epoxy, or carpet. Ensures static electricity safely dissipates to earth.

DIY & Decorative Uses

• Can be used for creative wall designs with conductive properties. Suitable for art projects, smart home installations, and prototyping.

Step 1: Surface Preparation
Clean the substrate to remove dust, oil, and contaminants for maximum adhesion.

Step 2: Mark & Apply the Tape
Use a pencil or chalk to mark the application area.
Peel off the protective liner and firmly press the tape onto the surface.

Step 3: Solder & Ground Connections
For ESD flooring, lay a grid pattern with 600mm spacing.
Solder grounding wires to the tape and connect them to earth grounding points.

Step 4: Test Conductivity
Use a multimeter to ensure proper electrical continuity.
